Adjustable Console Radio Mount - Clamping Mount Works With CB, Ham, GMRS Radios, Scanners and More
Processing Time: Allow 1-3 business days for this item to ship.
Couldn't load pickup availability
This adjustable clamping radio mount is a great option if we don't have a mount specific to your vehicle and/or console configuration.
This mount uses two bolts to clamp onto your cup holder or side wall of your console. Once the mount is securely in place, use the slotted holes to attach your radio bracket to the mount. The mount comes with hardware to attach your radio bracket.
This mount consists of three plastic pieces, all of which include non-abrasive grip tape to aid in keeping the mount in place. The grip tape helps ensure the mount will stay in place in a wider range of applications and also provides some protection for the plastics of your console.
The main mount components are curved to fit a cup holder, but an adapter is included to create a flat surface if you are mounting to a flat surface.
Hardware to attach your radio bracket to the mount is included.
This is a 3D printed part made of ABS.
Clamping Range: 1.5" - 3.75"
This means whatever you clamp to must be at least 1.5" wide but no wider than 3.75". The mount comes with 2-3/4" bolts and 4" bolts. Both sizes are provided so you can swap in the shorter or longer bolts depending on what you are mounting to. If you use the longer bolts when mounting to a narrower area, you will find that they stick out the backside of the mount into your cup holder, so use the short bolts unless you need more length.
Installation Tip: Do not over-tighten the clamping bolts when you install this on the cup holder or console. In testing these, I've found that the mount can withstand more than enough force to keep it in place, especially with the grip tape. There is no need to crank on it so hard that it breaks.
Video Overview:
| Method of Manufacture |
3D Print |
| Print Time | 10 Hours 27 Minutes |
| Material | ABS |
| Weight | 19 oz |
| Dimensions (L x W x H) |
7.63 in x 2.93 in x 3.70 in |
|
Mounting Slots Diagram |
|
Your purchase will include the following:
- (1) SKYMO USA Clamping Radio Mount, 3 pieces
- (2) 5/16-18 x 7/8 coupling nuts (preinstalled in plastic part)
- (2) slotted spacers (preinstalled in plastic part)
- (2) 5/16-18 x 2-1/2 hex head bolts
- (2) 5/16-18 x 4 hex head bolts
- (2) 5/16 flat washers
- (2) #10-24 x 1 Phillips head screws
- (2) #10-24 lock nuts
- (4) #10 washers
Very well built, good design
Thank you for your review! Love seeing the photos!
High quality build. Worked well in my installation.
Thank you for the great review!
I had to adapt it a bit, used a 3/16 block of aluminum to shim it up. It fits well in my 2025 Ford Explorer. Quick and easy, lemon squeezy!
Thanks for your review! Glad you are enjoying it!
Exactly what I needed to get the radio in the truck!
Thank you for your review!
I don't know I haven't got it yet
Live in Alberta Canada. Installed mount in a 2025 Ford Maverick and took a drive on the WORST road in the county. Mount and radio never moved. Just need to shorten up the bolts for a cleaner look. Will have to see how it stands up in the long run.
Sounds like a great first test! Thanks for the feedback.
Was as described great Merchant
Thanks for taking the time to leave a review!
The item work great I haven't seen anything like it before. I hope the is something similar for my hogkaide dm9100 ham radioes I am getting to love to see if there is something for that item
Thank you for the review! Feel free to get in touch with me via message with more info about your needs with the new radios and I can advise further.

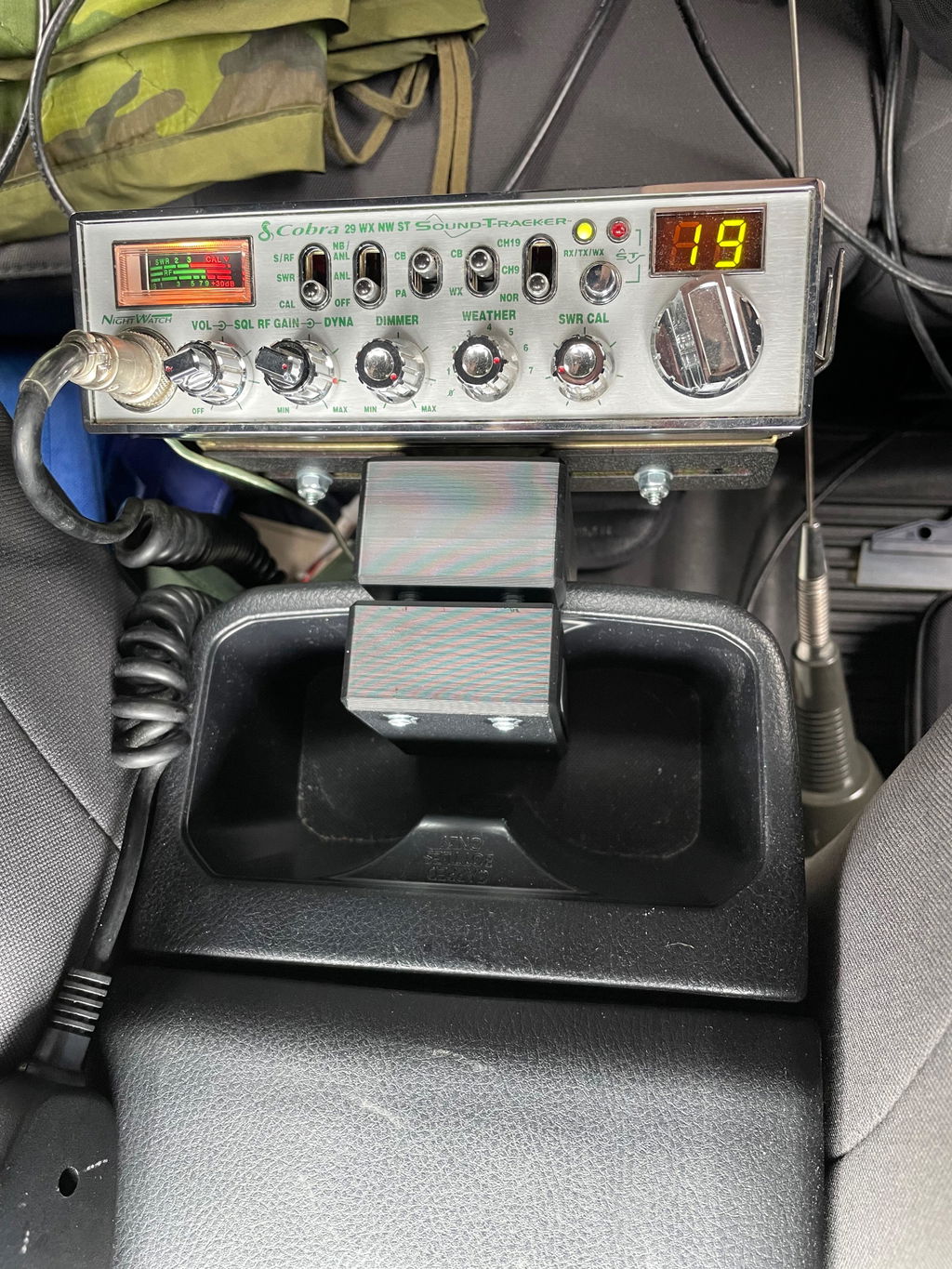

Worked perfectly with my 1998 Ford Ranger cup holder console. I can still open the console albeit the cup holder is not useable. Probably not a good idea to have 16 ounces potentially towering over the CB. Nice unit. A+++
Thank you for the review! Happy to hear it is working well in your Ranger.
Well made , arrived early.
Thank you for your review!
