Radio Mount | 2019-2023 Silverado Sierra With Full-Length Center Floor Console (Square Pocket Between Cup Holders)

Fitment Notes

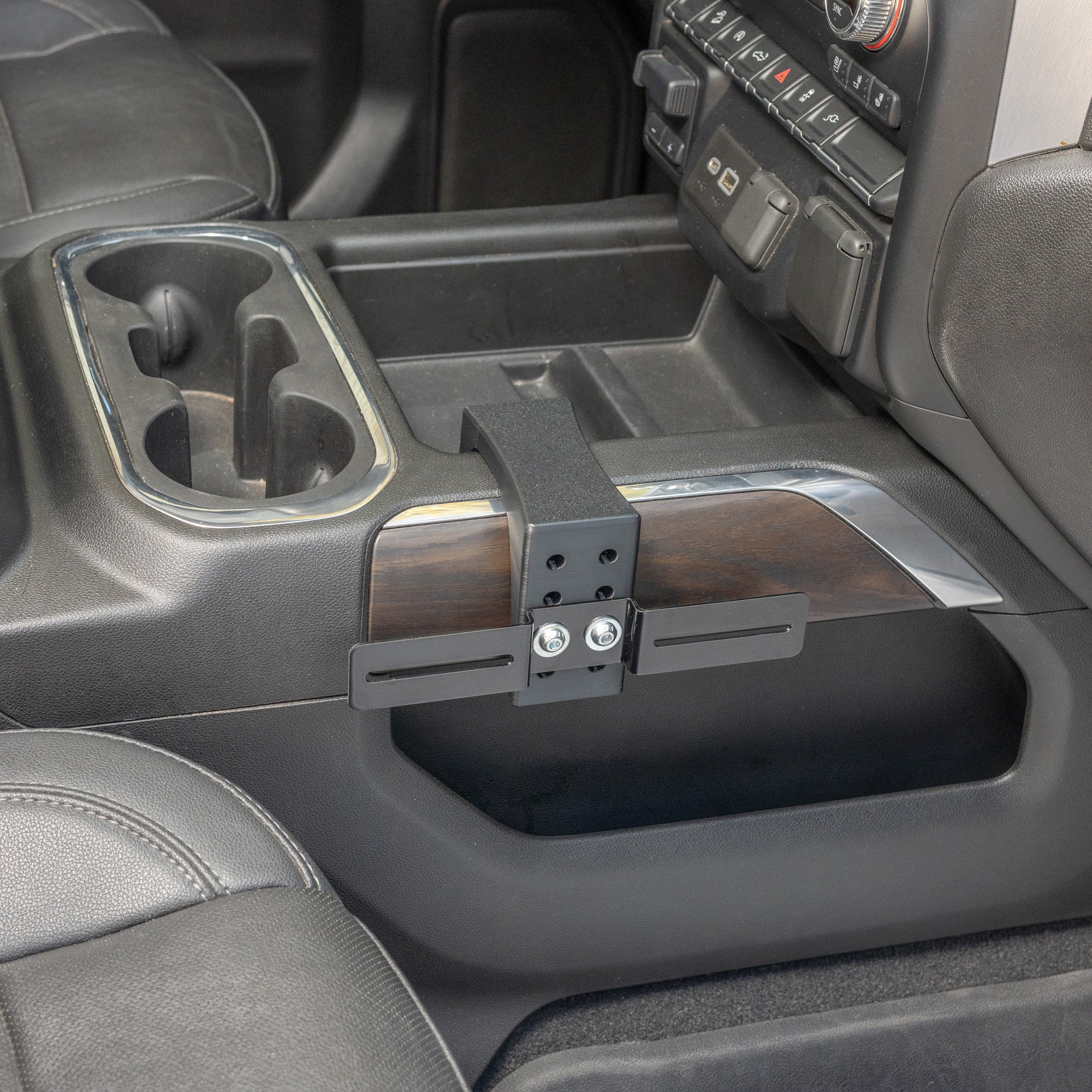

This radio mount fits select 2019-2023 Chevy Silverado and GMC Sierra trucks that have the full-length center floor console with cup holders that run side to side and have a square pocket between them, as shown in the product photos. This version of the console is found in the following models:

• 2019-2022.5 Silverado 1500 and Sierra 1500 (only the console version shown in the product photos)
  • Note: There was a refresh midway through 2022. Some 2022 models have a newer console style with the cup holders running front to back. This mount only fits the older console with cup holders running side to side and with the square pocket between them.
• 2020-2023 Silverado 2500 and Sierra 2500
• 2020-2023 Silverado 3500 and Sierra 3500

Note: There is a version of this console found in some trucks with a sloped ramp on the driver side of the console pocket. You may not be able to secure this radio mount along the entire driver side of the console due to interference from this ramp. It will still fit anywhere along the passenger side.

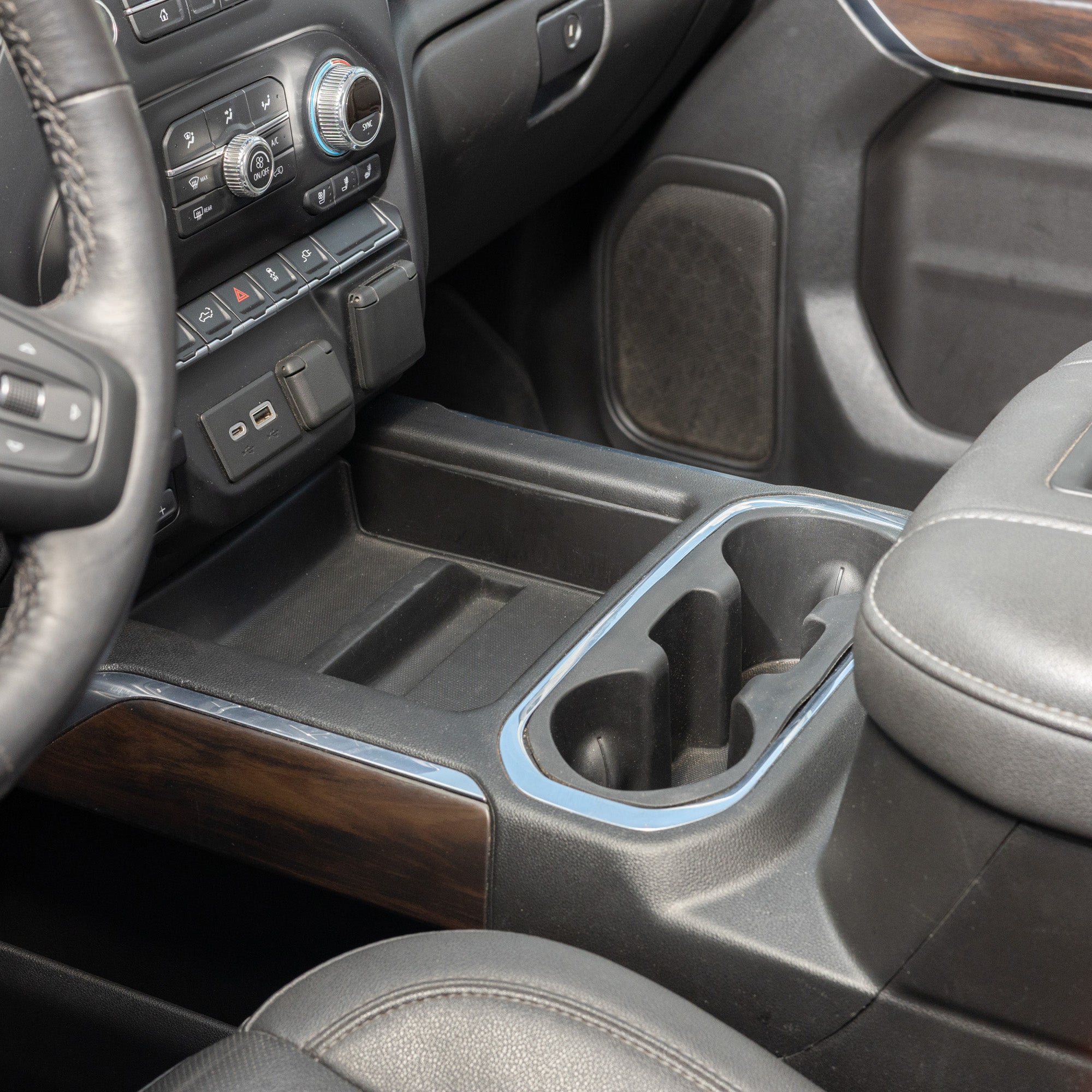

To ensure proper fitment, make sure your console and cup holders match what is shown in the photos - it should have two cup holders that run side to side and there should be a square pocket between them.

Description

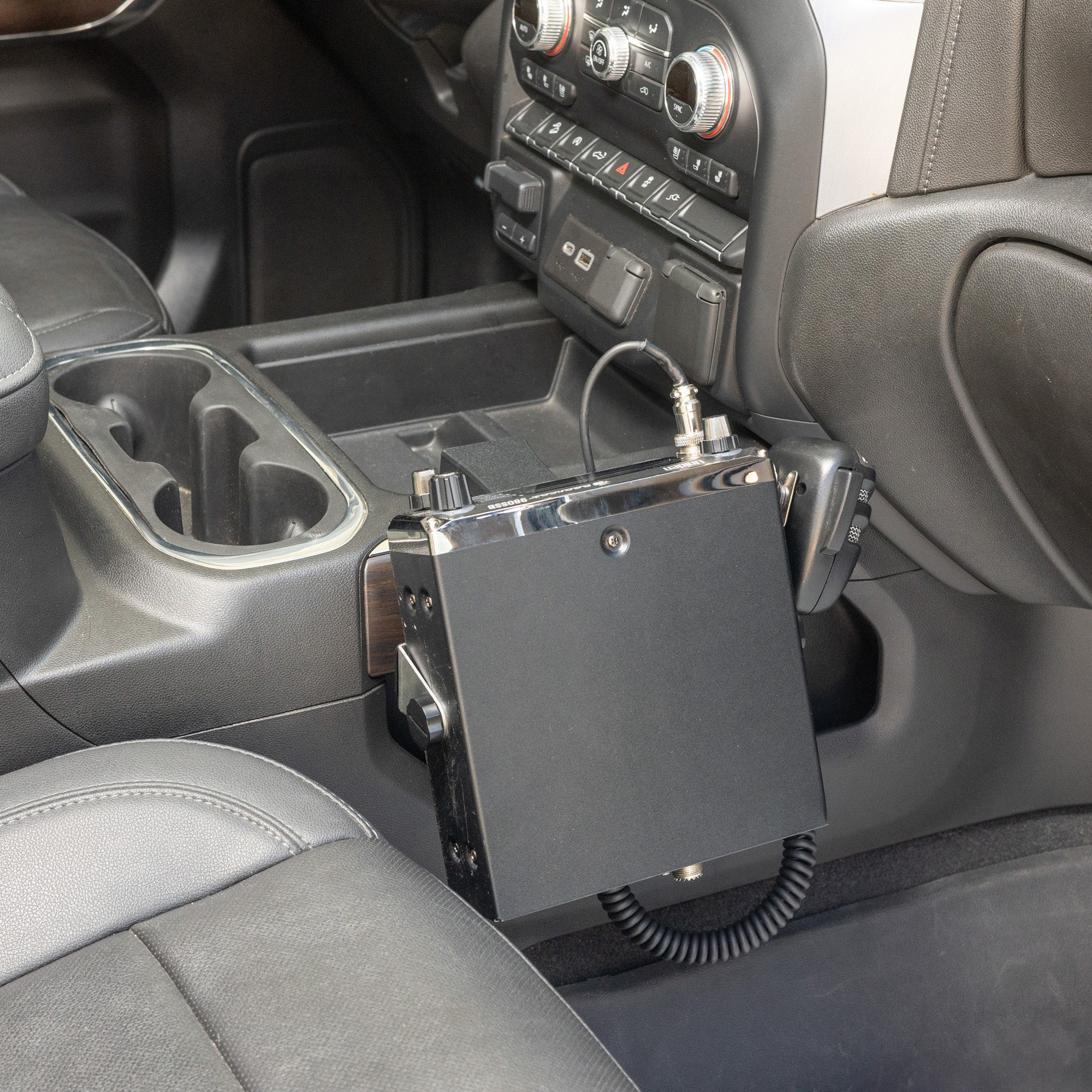

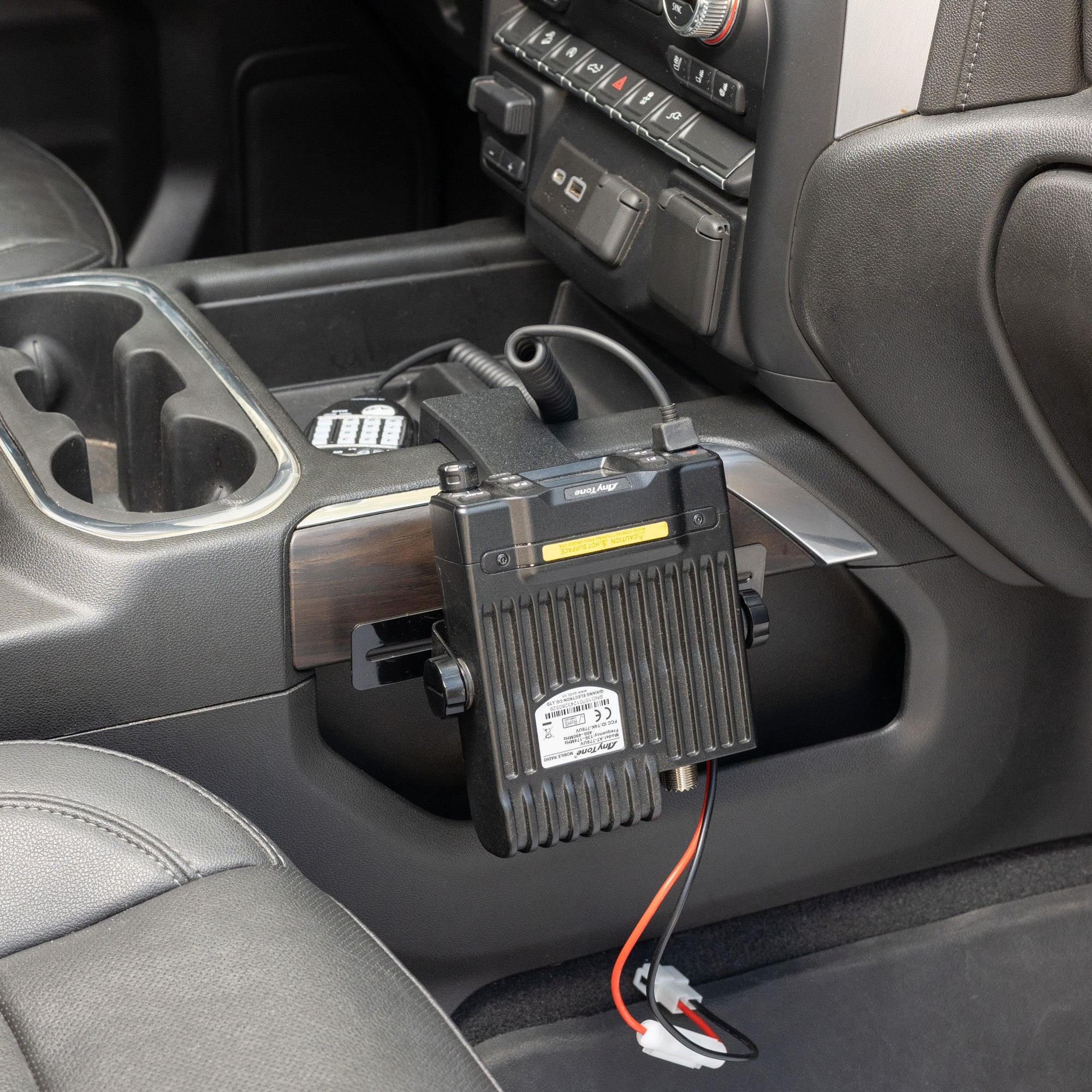

If you've been looking for how to install a CB radio, ham radio, GMRS radio, scanner, or other two-way radio in your Chevrolet Silverado or GMC Sierra, this is a great option. It attaches securely to the console sidewall on either the passenger or driver side of the console. The mount is easily removable if you want the radio out of the way, but it maintains a strong connection to the console when in use.

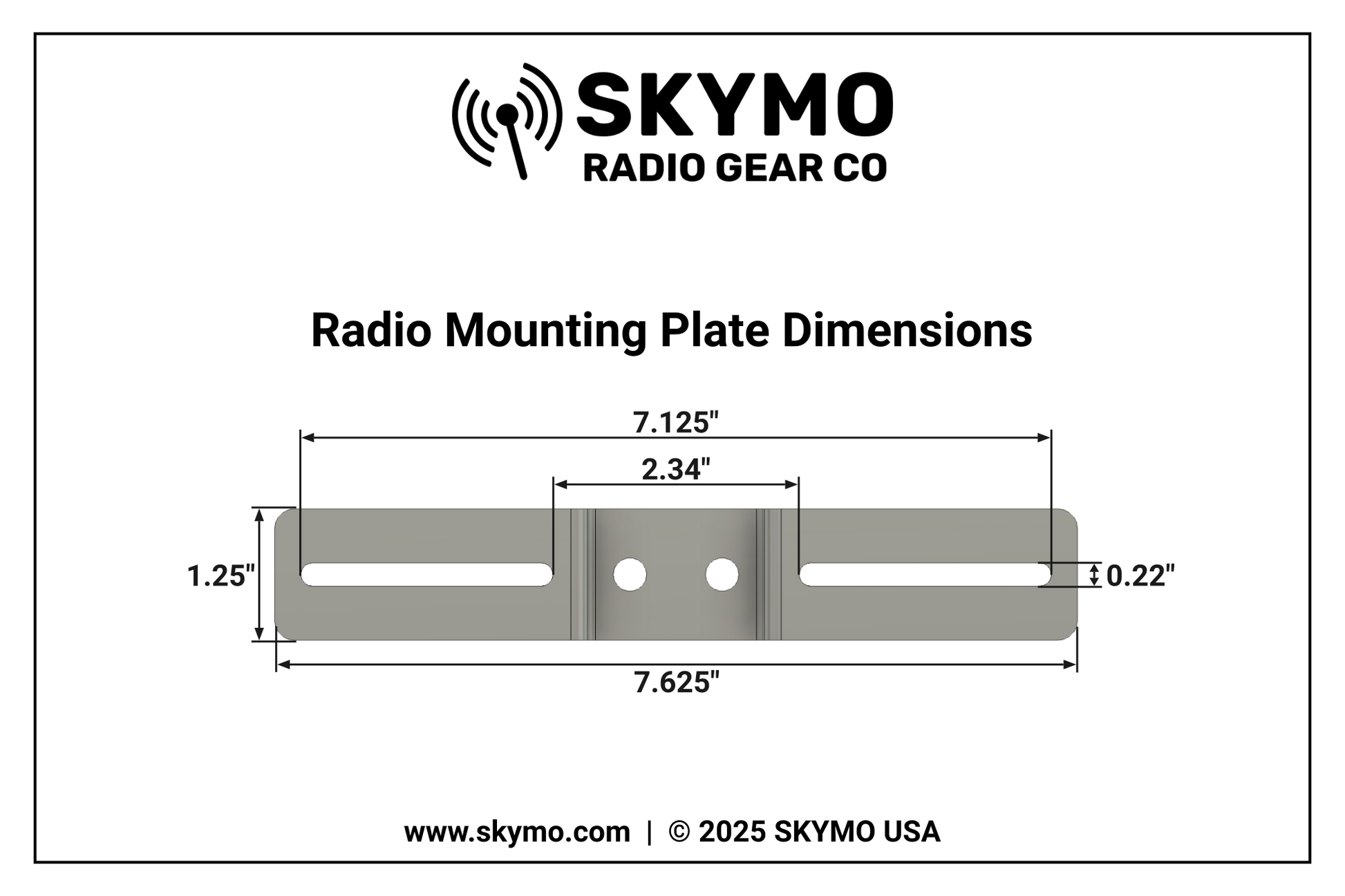

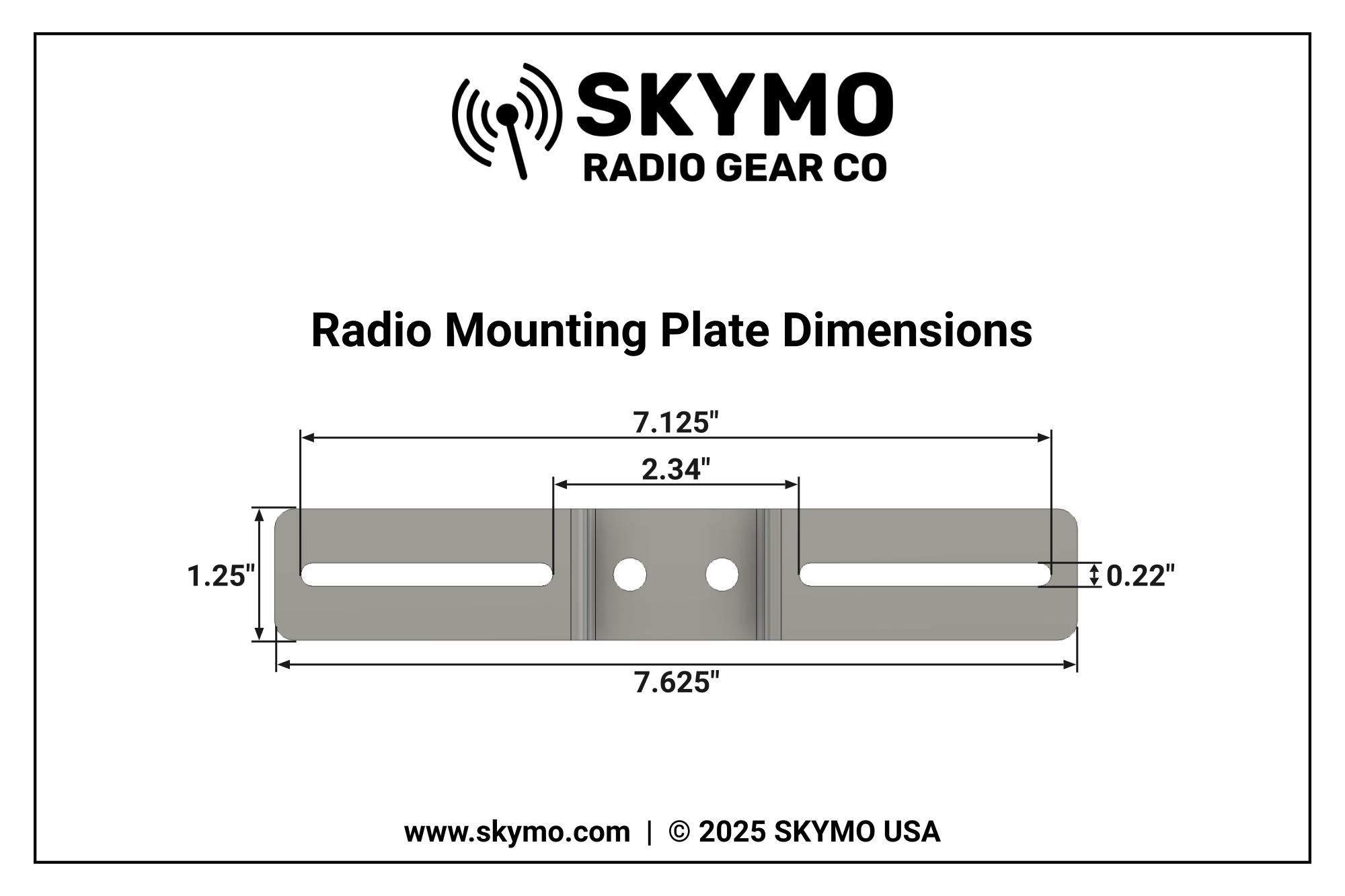

The Mounting Plate is 14 gauge steel, powder-coated black. The Mount Base is a printed part made of ABS.

Thanks for stopping by and please don’t hesitate to reach out with any questions!

Getting Started

Watch the video below for a quick walkthrough of what you need to know to get started with your new radio mount.

To use the radio mount:

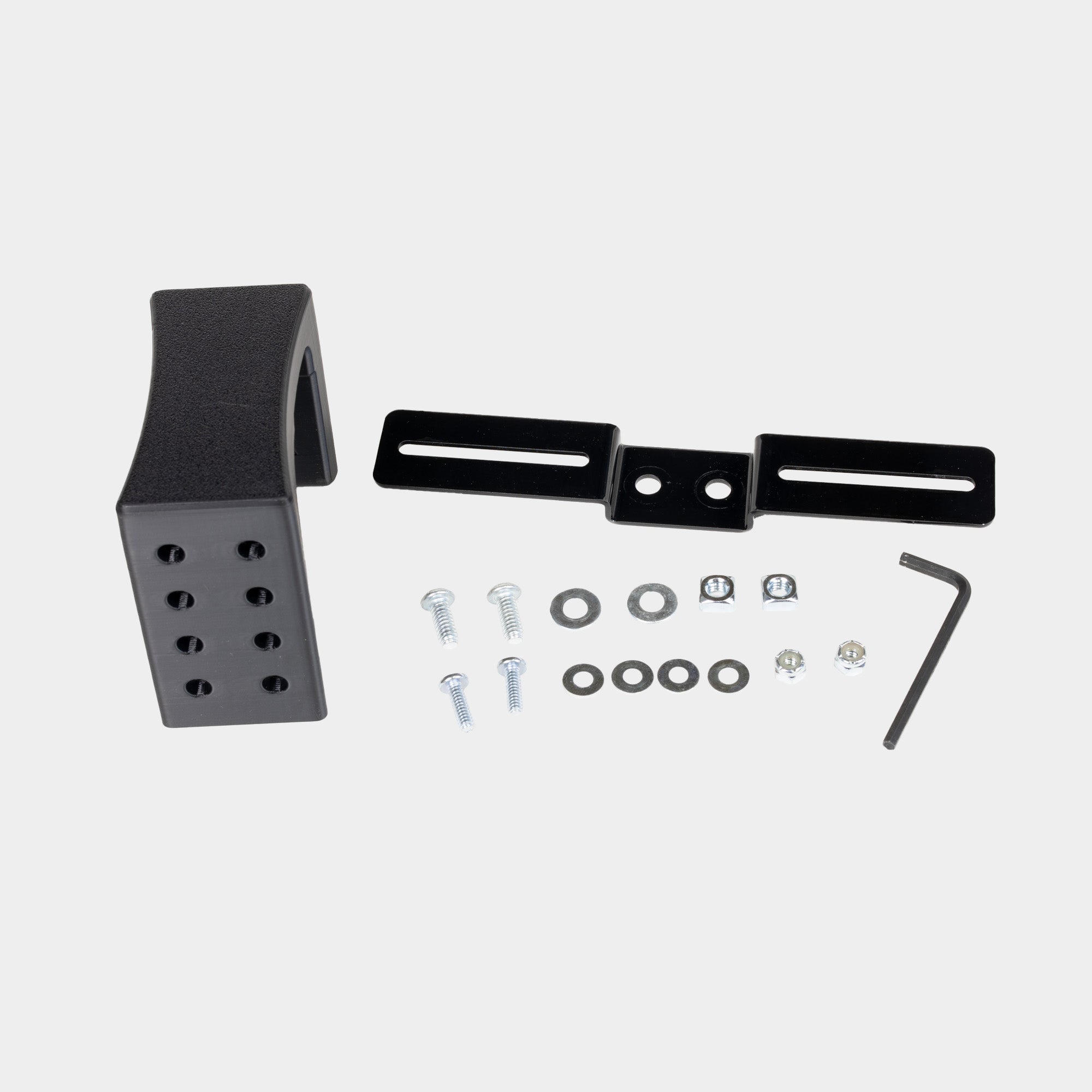

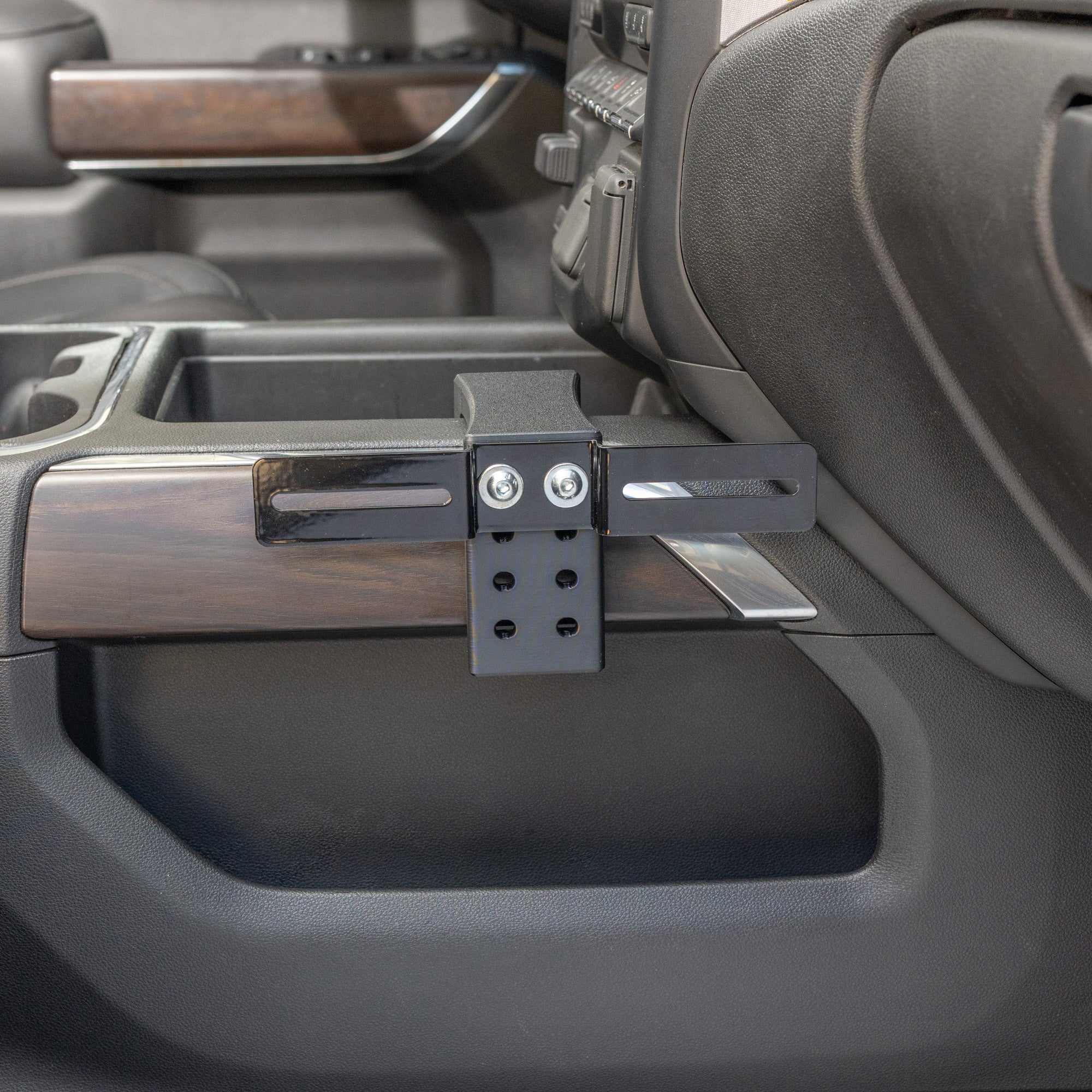

1. Use the 1/4” hardware ((2) button head cap screws, (2) square nuts, (2) washers) to secure the Mounting Plate to the Mount Base at your desired height.
2. Use the #10 hardware ((2) screws, (2) lock nuts, (4) washers) to bolt your OEM radio bracket that came with your radio to the Mounting Plate.
3. Install your radio on the OEM radio bracket.

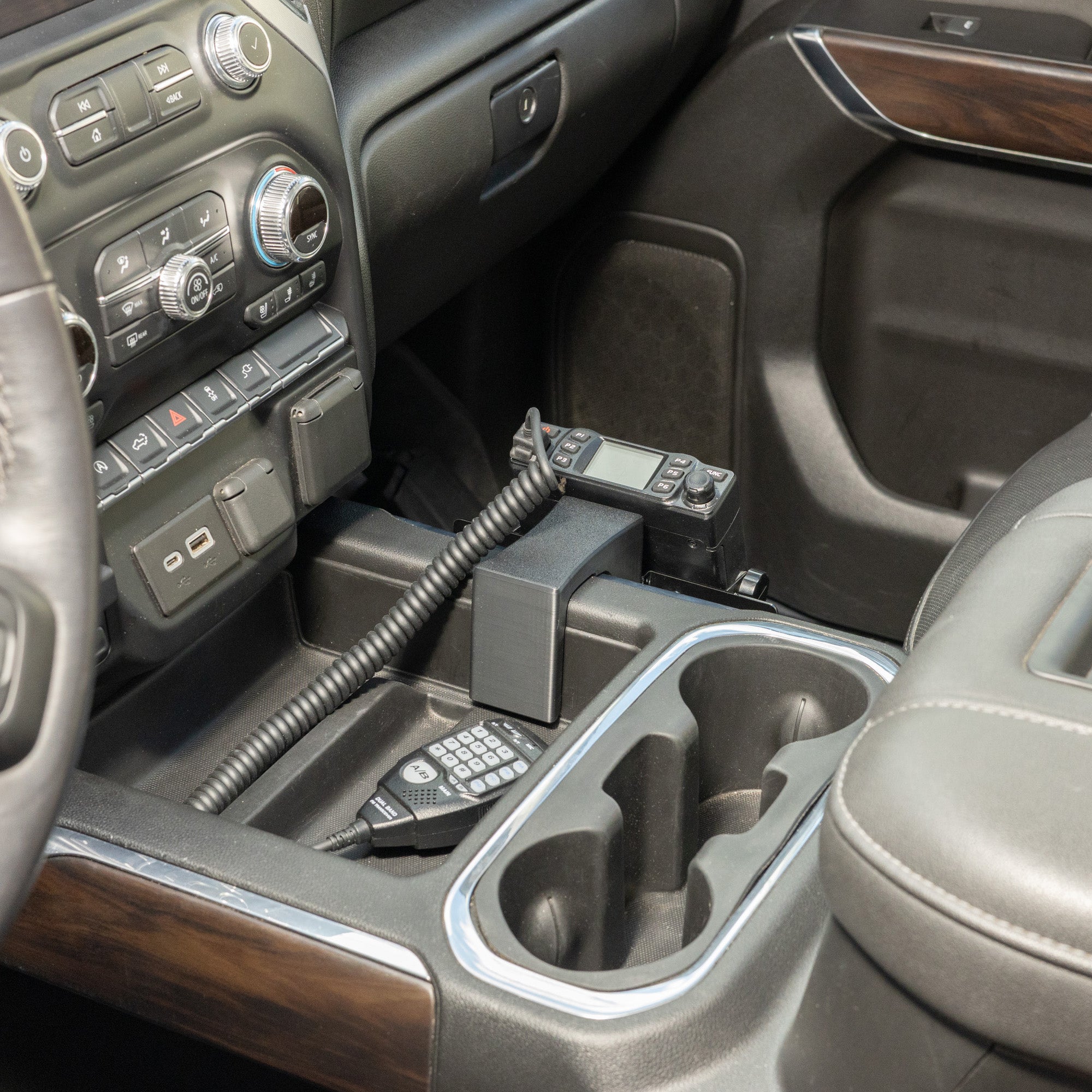

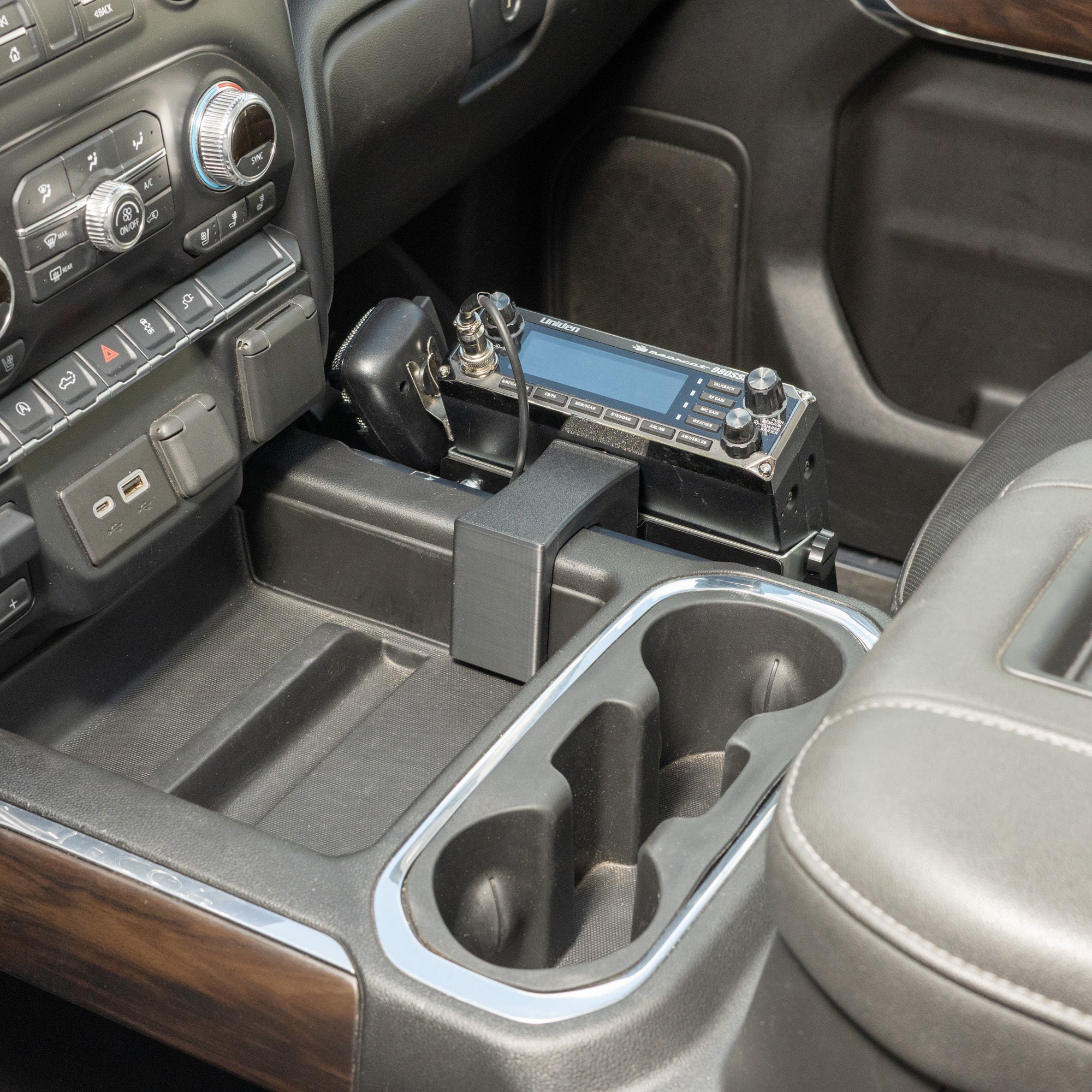

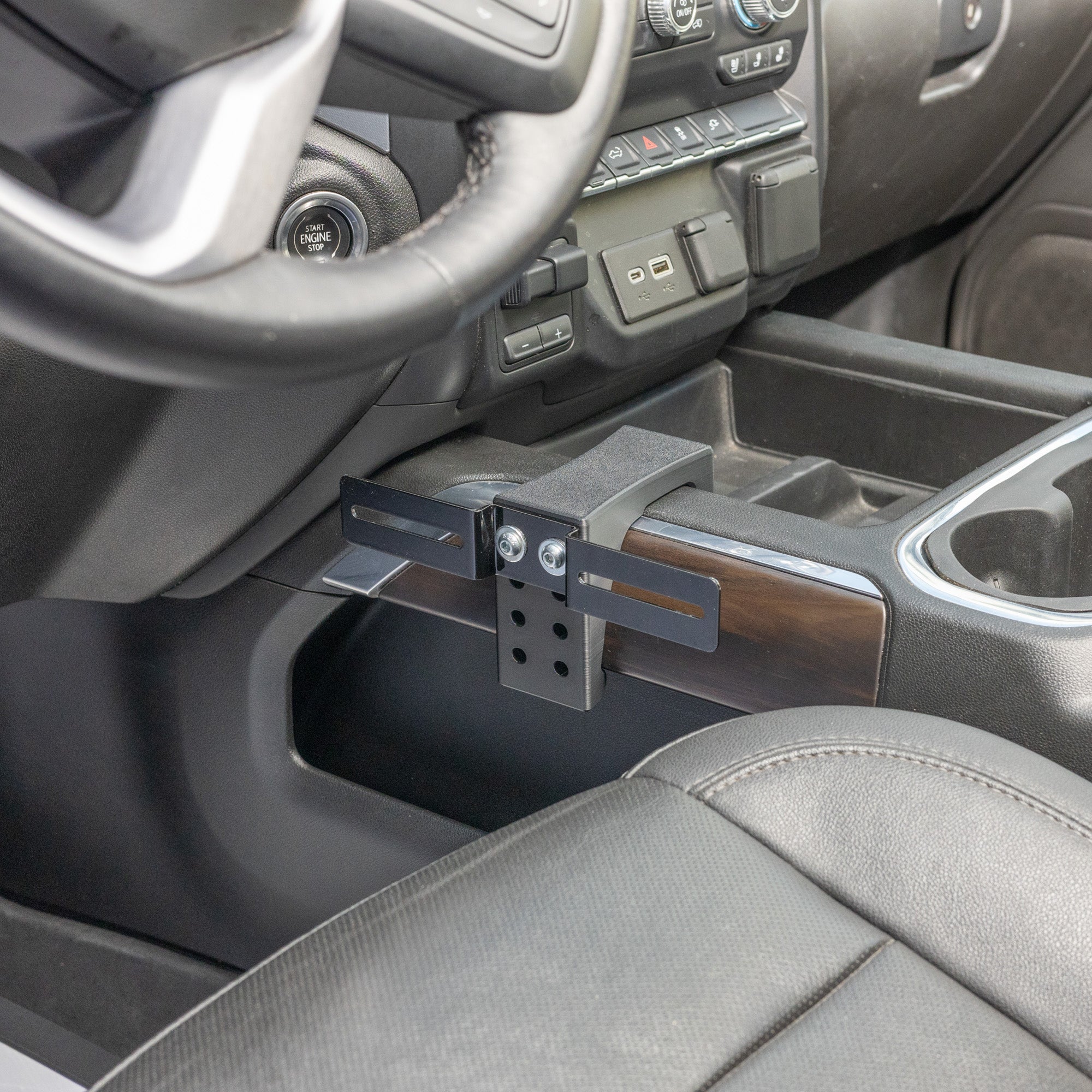

4. Press the mount onto your center console sidewall. The mount fits on both the passenger and driver side sidewall.

Installation is easy and no hardware or drilling is required to attach the Mount Base to the console.
